€94,95
✔ Shipped in 20-24 business days
Description

Compact, lightweight, multifunctional - the DB EX-03 speedometer serves as a speed indicator, odometer, (operating) hour meter, clock, stopwatch, voltmeter, shows the trip, maintenance mileage and records values such as maximum speed, maximum voltage, and average speed.

Equipped with indicator lights for engine oil, low fuel level, water temperature, high beam, indicators, and engine light, the 70g light DB EX-03 speedometer impresses across the board with a size of only 120mm x 38.8mm x 34.2mm



Speedometer
Display range: 0 ~ 360 km/h (0 ~225 mph) Display unit: km/h alternatively mph
Odometer
Display range: 0 ~ 99,999 km (miles), automatic reset after 99,999 km (miles)

Day counter A, B
Display unit: 1 km (mile) Display range: 0.0 ~ 9,999.9 km (miles),
automatic reset after 9,999.9 km (miles)

Hour counter
Display unit: 0.1 km (mile)
Display range: 0 ~ 99,999 hours
Display unit: 1 hour

Hour meter A/B
Display range: 0~9,999.9 hours, automatic reset after 9,999.9 hours
Display unit: 0.1 hour

Clock
Display range: 00:00 ~ 23:59

Voltmeter
Display range: 8.0 ~ 18.0 V DC
Display unit: 0.1 V DC

Stopwatch
Setting range: 0:00:00 ~ 9:59:99
Setting unit: 0.01 sec.

Maintenance odometer reading
Setting range: 300 ~ 5,000 km, can be cleared manually.
manually.
Setting unit: 1 km

MAX. Recording
Average speed: 0 to 360 km/h
(0 to 225 mph)
Max. Speed: 0 to 360 km/h (0 to 225 mph)
Max. Voltage: 8.0 ~ 18.0 V DC

Internal battery level
Display range: 4 levels

Operating temperature
-10 ~ +60°C

Size of the meter
120.0 x 38.8 x 34.2 mm

Specification
JIS D 0203 S2

Weight of the meter
Approx. 70 g

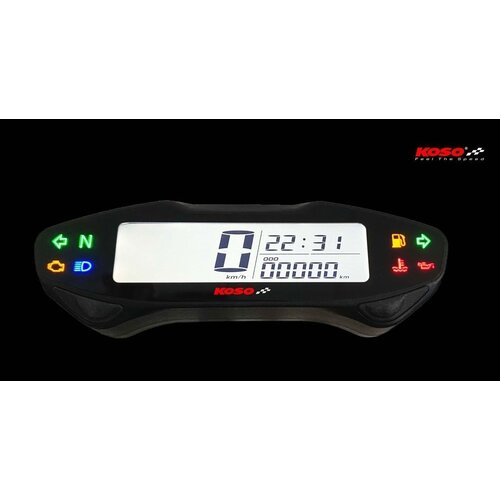

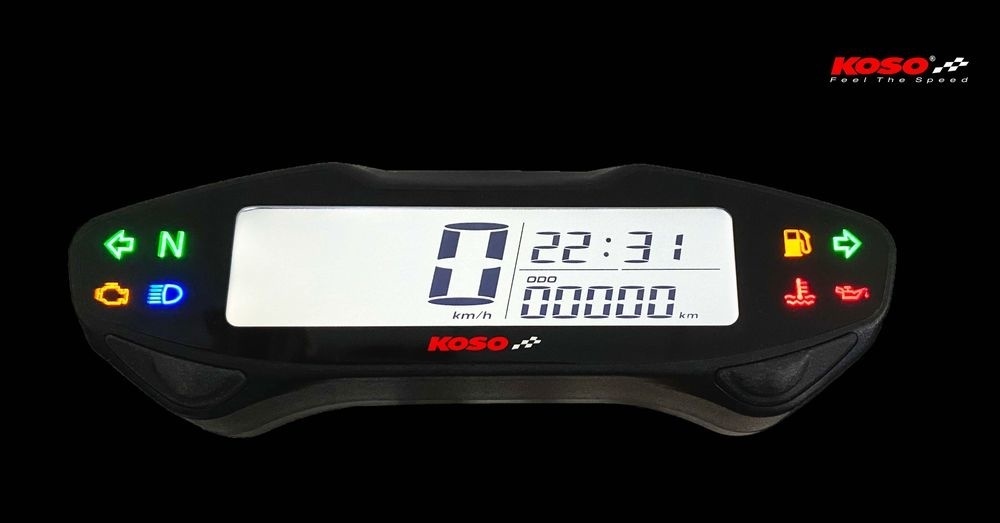

Indicator lamp
Right indicator lamp (green)
Engine oil lamp (red)
Low fuel warning light (amber) Water temperature light (red)
Neutral lamp (green)
High beam light (blue)
Left indicator lamp (green)
Engine lamp (yellow)
