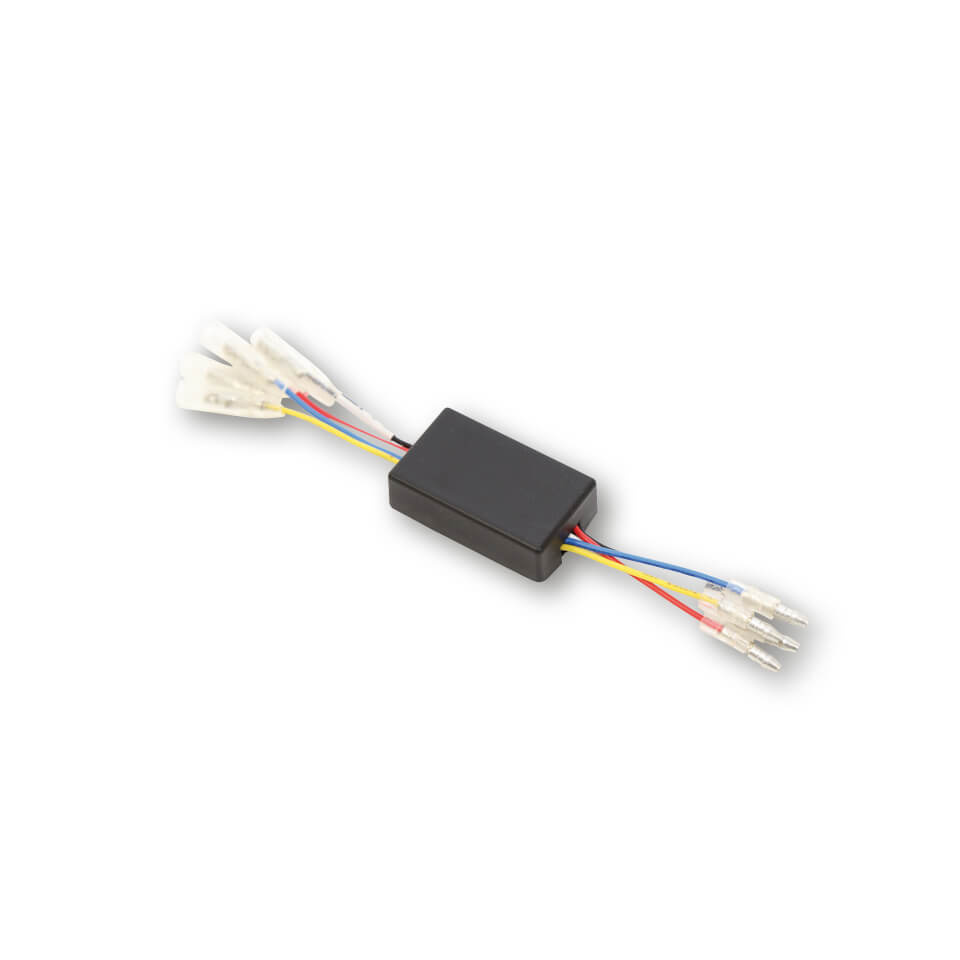

HIGHSIDER DRL CONTROL- BOX CB1

Control box for daytime running lights in cars without a light switch.
The DRL CONTROL-BOX CB1 installation allows for the proper switching of the front illumination on a secured vehicle between a conventional main headlight and a separate HIGHSIDER daytime running light (TFL) or a HIGHSIDERLED main headlight with integrated daytime running light (TFL).

As per the regulations, it is mandatory to connect the daytime running light so that it turns off automatically when the main headlight is turned on.
In cars without a light switch, the primary headlight is always on, therefore the HIGHSIDER daytime running light would not operate as intended.

Dimensions
Length: 48 mm
Width: 28 mm
Height: 14 mm

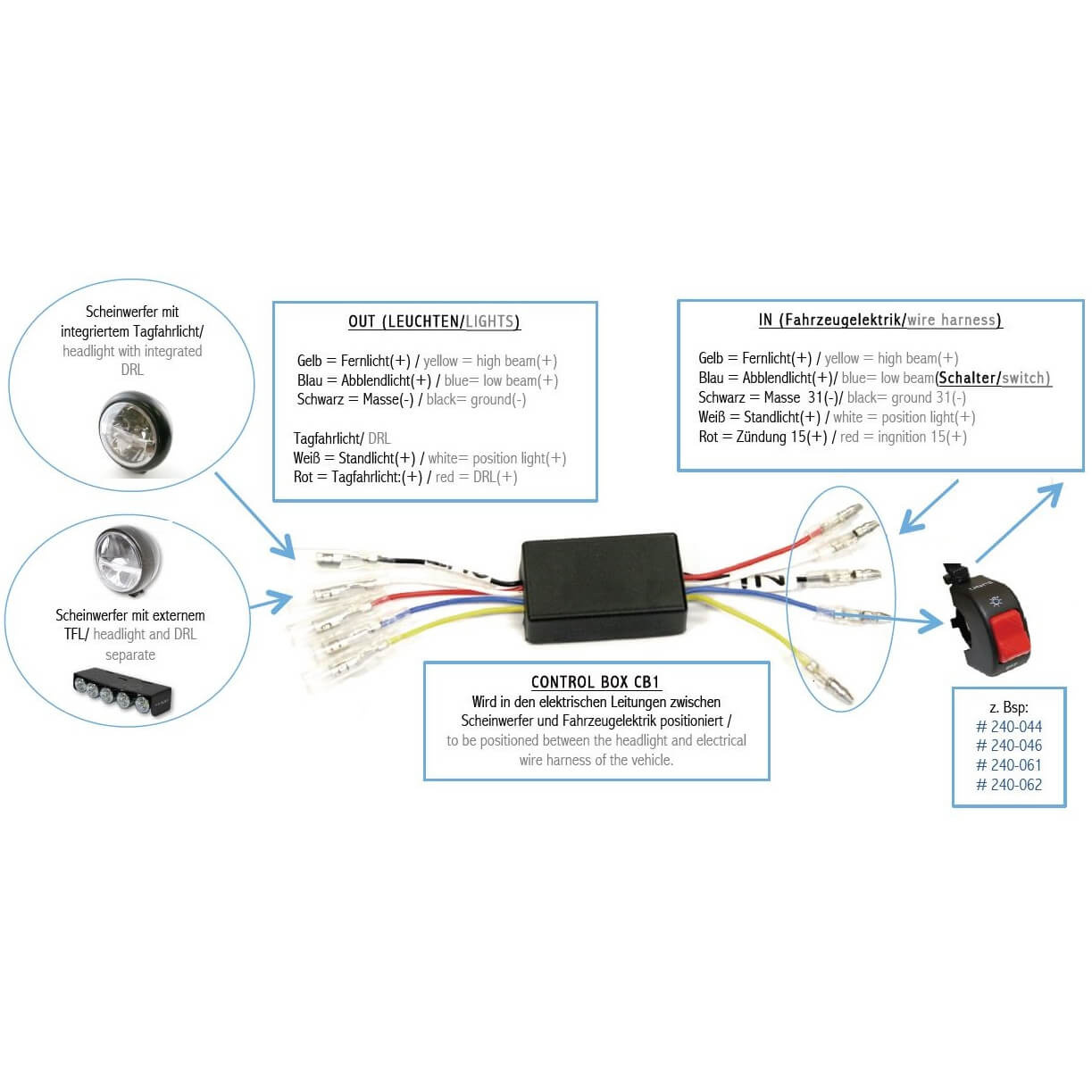

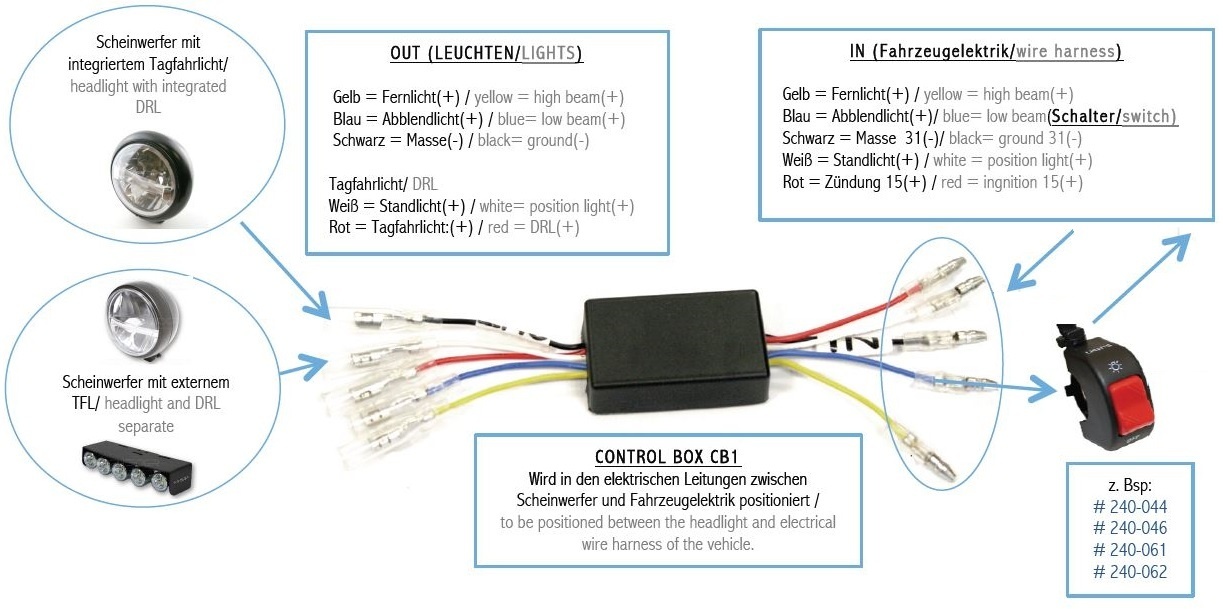

Employment:
IN(vehicle electrics):
Yellow = high beam (+)
Blue = low beam (+) ON / OFF switch between
White = parking lights (+)
Red = ignition 15 (+)
Black = ground (-)

OUT (headlights)
Yellow = high beam (+)
Blue = low beam (+)
Black= ground (-)

To the daytime running lights:

White = parking light (+)
Red = daytime running light (+)

Scope of supply: 1 piece

Optional accessories:
Light switch on / off with clamp for handlebar mounting part number 240-044

Note:
It is also a separate ON and OFF switch for the DRL CONTROL-BOX required (not included). The rear tail light must always remain switched on, i.e. on ignition plus.

Article Code : 208-108
